Llewellin time check machine c.1900:

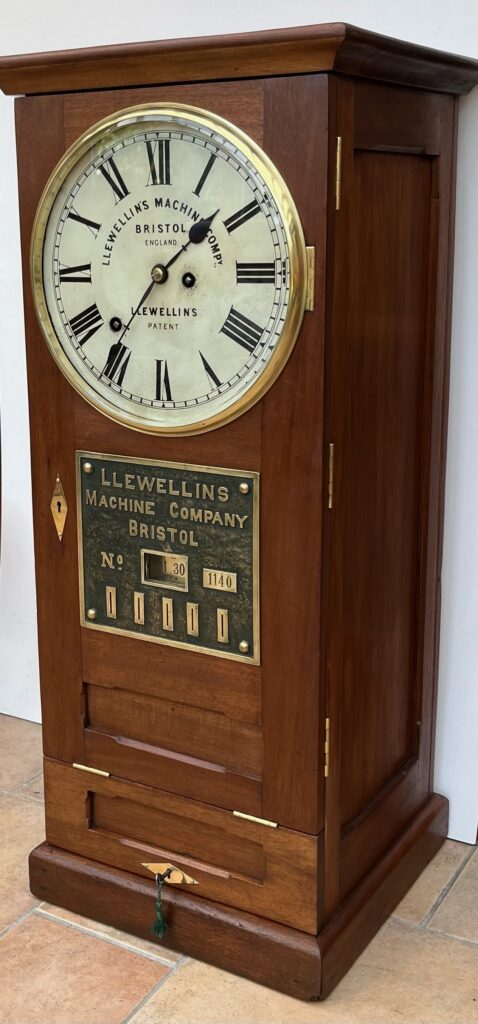

A restored Llewellin time check machine

Here is a rare Llewellin time check machine which I found in need of some TLC and which I fully restored in 2024.

I have documented the restoration, and many more photos and information can be found in the Restorations section of this website.

Llewellin time check machine c.1890:

An example of a very early Llewellin time check recorder. Photos kindly provided by Bob Simon from the USA

Llewellin time check machine front view
Llewellin time check machine front plate
Brass front panel with start period time displayed and 5 slots for workers to insert their 'checks'

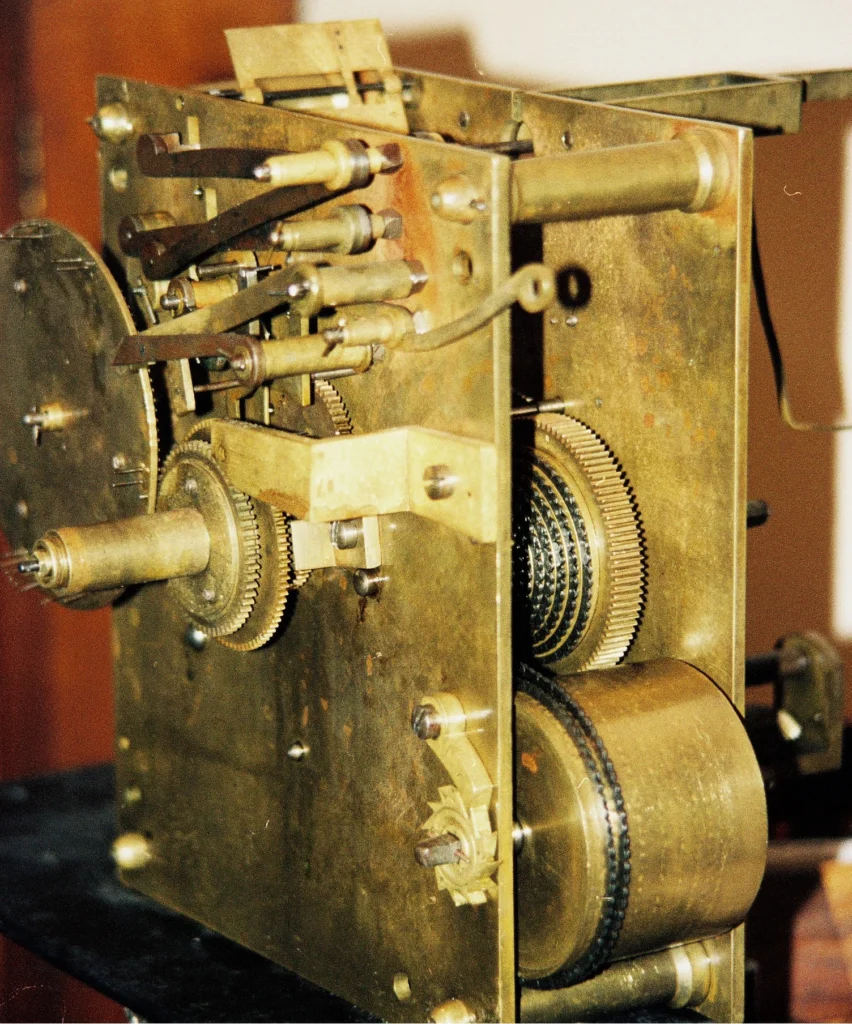

Llewellin time check machine clock movement
Fusee movement with drum drive mechanism
Llewellin time check machine pendulum and time period drum
Llewellin time check machine time period drum and check collection tray
Rotating time period display drum and static check collector
Llewellin time check machine check distribution funnel
Rotating check distribution shute
Llewellin time check machine c.1900:

The photographs below kindly sent to me by Anna and Andrew Graham from Somerset in England, show another rare Llewellin time check recorder

Llewellin time check machine front view
Llewellin time check machine front plate and window
The front brass plate has a window to indicate the current clocking-in period, and 5 slots for workers to put their own numbered check into. The slots all led to the same internal chute so any slot could be used, allowing the machine to process multiple workers simultaneously
Llewellin time check machine copper and brass time checks on rack
To use this type of time recorder, each worker was allocated a numbered check which they inserted into the machine on arrival at work. These checks were usually stored on a rack adjacent to the clock
Llewellin time check machine copper and brass time checks on rack
For this particular machine each worker had two checks, one brass for clocking in in the morning, and the other copper for the afternoon
Llewellin time check machine brass time stamped drum
An internal brass drum stamped with 8 different time periods is rotated in synchronised steps by the clock mechanism. This specific model displays the time periods 8.00, 8.05, 8.30, 8.35, 1.45, 2.00, 2.05, and 12.00. Presumably, the time settings were customisable when ordering the machines
Llewellin time check machine check distribution funnel
When the checks were inserted, they fell into a chute which rotates with the central drum. This timed rotation directs the checks to the corresponding time-stamped section of a segmented circular tray at the bottom of the machine
Llewellin time check machine check collection tray
Llewellin time check machine check collection tray access door
The time period segmented tray at the bottom of the machine is accessible and removable by opening a locked section of the front panel. At the end of the working day, the time clerk would record which time section the check numbers were located in, and return all of the checks to the check board
